| Markenname: | Retek |
| Modellnummer: | Stahlzüge |
| MOQ: | 1000 Prozent |
| Preis: | Verhandelbar |
| Lieferzeit: | 10 Tage |

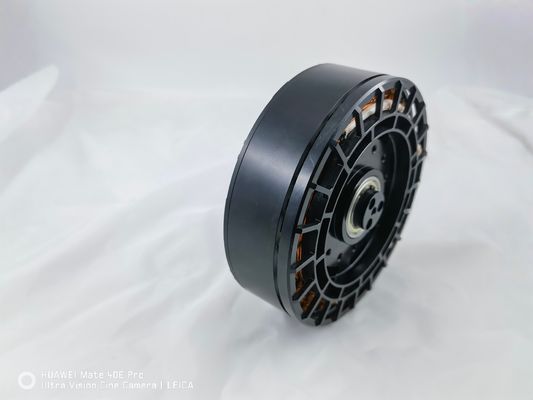

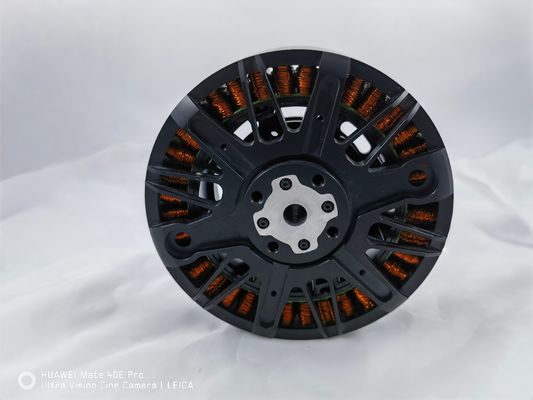

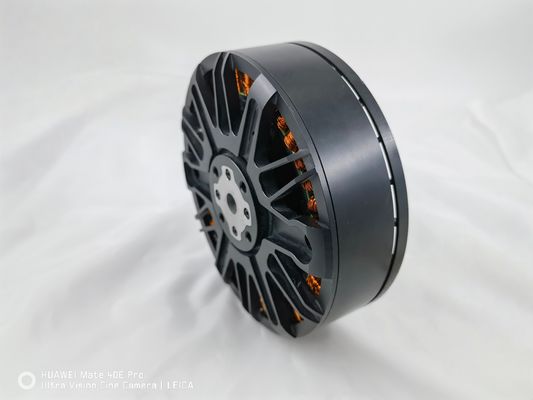

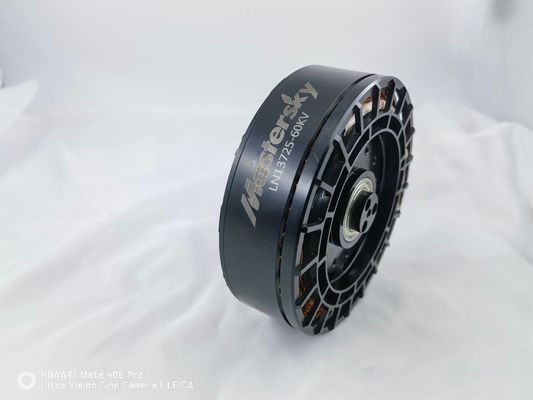

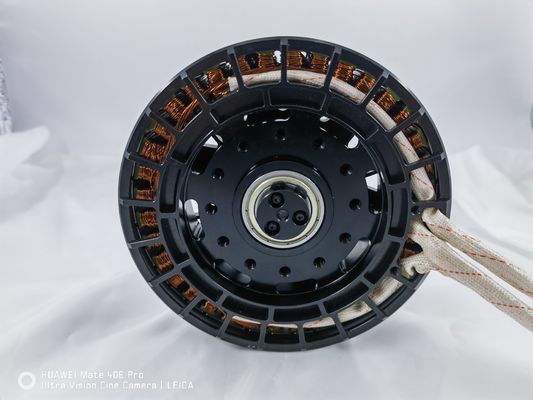

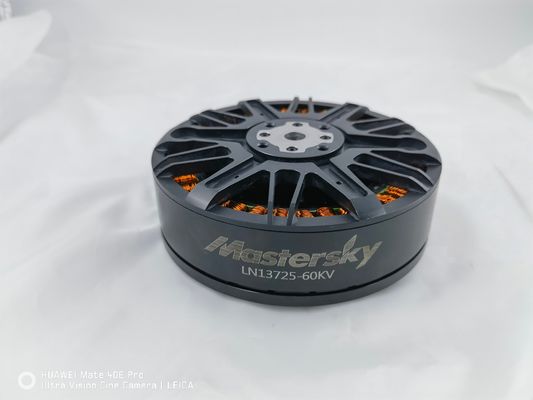

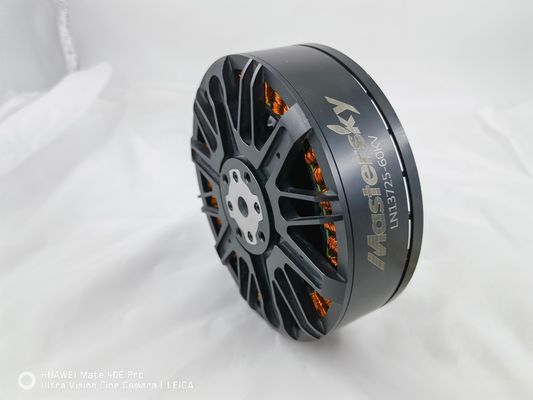

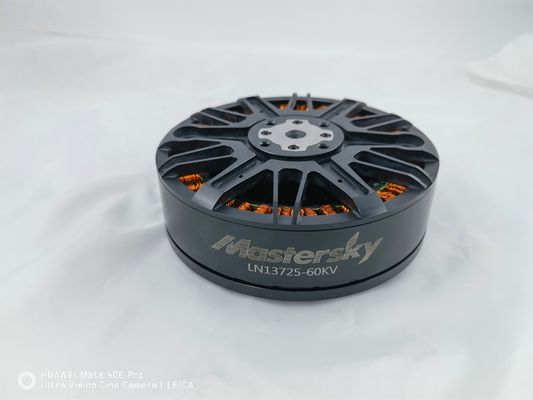

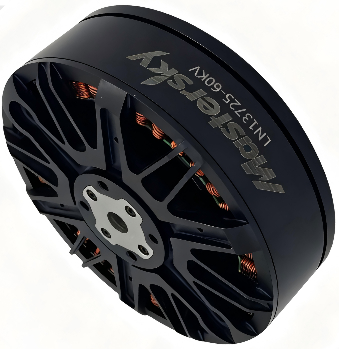

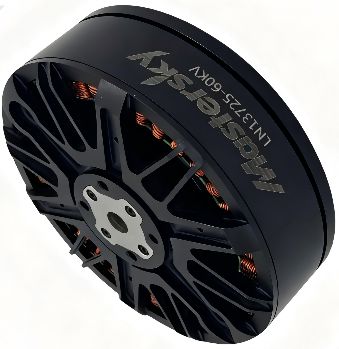

The motor model LN13725D24-001 (60KV) has a rated voltage of 60VDC and rotates counterclockwise (CCW) when viewed from the shaft extension end. Its no-load performance is 3600±10% RPM with a maximum current of 1.5A, while the load performance is 2610±10% RPM, 148.9A±10% current, and 29.25N.m torque. The motor vibration is ≤7m/s, the backlash is between 0.01mm and 0.2mm, and the noise at 1m distance is ≤60dB when the ambient noise is ≤45dB. It has an insulation class of CLASS F. During operation, there are no abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play, and its appearance is clean without rust.
|
|
| Markenname: | Retek |
| Modellnummer: | Stahlzüge |
| MOQ: | 1000 Prozent |
| Preis: | Verhandelbar |
| Verpackungsdetails: | 25pcs/Karton |
The motor model LN13725D24-001 (60KV) has a rated voltage of 60VDC and rotates counterclockwise (CCW) when viewed from the shaft extension end. Its no-load performance is 3600±10% RPM with a maximum current of 1.5A, while the load performance is 2610±10% RPM, 148.9A±10% current, and 29.25N.m torque. The motor vibration is ≤7m/s, the backlash is between 0.01mm and 0.2mm, and the noise at 1m distance is ≤60dB when the ambient noise is ≤45dB. It has an insulation class of CLASS F. During operation, there are no abnormal phenomena such as smoke, peculiar smell, abnormal noise, or end play, and its appearance is clean without rust.
